Automobile Camshaft: Inspection, Care, and Performance Enhancement Tips

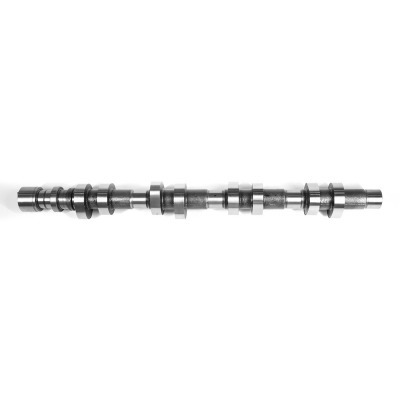

The automobile camshaft is a fundamental engine component that controls the timing and lift of the engine valves. Its design and condition directly influence engine breathing, combustion efficiency, power output, and fuel economy.

The camshaft's key parameters include:

• Cam Lift: The maximum distance the cam lobe lifts the valve. Typical values range from 8 to 14 mm depending on engine type and performance requirements.
• Duration: The number of crankshaft degrees during which the valve remains open. Usually between 190° and 310°.
• Lobe Separation Angle (LSA): The angle between intake and exhaust cam lobes on the camshaft, typically from 104° to 114°, influencing valve overlap and engine characteristics.
• Material and Surface Hardness: High strength alloys with heat treatment (tempering, carburizing, quenching) ensure durability and wear resistance.

A well-designed camshaft optimizes valve timing to improve airflow, combustion, and engine responsiveness across the RPM range.

Top Automobile Camshaft Problems and How They Affect Engine Power

Common camshaft issues and their effects:

• Wear and Tear
  Surface wear reduces cam lift and valve timing accuracy, causing loss of power and rough running.
• Camshaft Lobe Flattening
  Flattened lobes reduce valve lift, leading to insufficient air/fuel mixture and reduced combustion efficiency.
• Bent or Warped Camshaft
  Causes misalignment in valve timing, resulting in engine knocking, vibration, and power loss.
• Improper Lubrication
  Leads to accelerated wear, increased friction, and potential camshaft failure.

Proper maintenance is essential to prevent these issues and maintain engine performance.

Automobile Camshaft: Maintenance and Performance Upgrade Guide

Daily Maintenance Practices

• Cleaning: Regularly remove carbon deposits and debris from the camshaft surface to prevent excessive wear.
• Lubrication: Use engine oils meeting viscosity and quality standards; replace oil and filters timely to maintain proper lubrication.
• Inspection: Periodically measure cam lift and valve timing; check bearing clearance and for abnormal noises.

Performance Upgrade Options

• Material Upgrade: Use high-strength alloy steel or titanium alloys for enhanced durability and high RPM performance.
• Design Optimization: Increase cam lift and duration to improve valve opening efficiency; adjust lobe separation angle for better power and idle balance.
• Surface Coating: Apply wear-resistant coatings (e.g., nitriding) to reduce friction and extend lifespan.

Maintenance and upgrades extend camshaft life and significantly boost engine performance.

How to Choose the Best Automobile Camshaft for Your Driving Style

Driving Style Requirements

• Daily Commuting: Emphasizes low-RPM torque, fuel efficiency, and smooth operation; suitable for cams with shorter duration, smaller lift, and wider lobe separation angle for idle stability.
• Highway Driving: Requires balanced mid-to-high RPM power and efficiency; cams with moderate lift and duration are ideal.
• Racing/Performance Driving: Needs high-RPM power and sharp throttle response; cams with high lift, long duration, and narrow lobe separation angles optimize power.

Selection Tips

• Match camshaft parameters to engine RPM range and driving needs.
• Consider fuel economy and emissions for daily use cams.
• Evaluate mechanical compatibility with intake/exhaust and ECU tuning capability.
• Factor in engine displacement, cylinder count, maintenance costs, and budget.

Advanced Automobile Camshaft Tuning and Optimization Techniques

Precise Valve Timing Adjustment

Adjust valve timing by changing camshaft position relative to the crankshaft to optimize intake/exhaust timing.

Intake and Exhaust System Coordination

Adjust intake manifold and exhaust headers diameters and designs to match camshaft upgrades for optimal airflow and reduced backpressure.

ECU Tuning to Maximize Camshaft Potential

• Adjust ignition timing (0°–40° advance) for combustion efficiency.
• Fine-tune fuel injection volume and timing.
• Utilize Variable Valve Timing (VVT) systems to dynamically optimize valve timing for power and economy.

Other Techniques

• Camshaft phase shifting to further refine valve timing.
• Multiple cam profiles with switching mechanisms for different engine modes.
• Valve spring matching for upgraded valve lift and frequency to avoid valve float.

Real-World Automobile Camshaft Upgrade Case Studies

Company Overview: Anhui KORBOR Machinery Co., Ltd.

Anhui KORBOR Machinery Co., Ltd., founded in 1999 (previously Ruian KORBOR Camshaft Manufacturing Co., Ltd.), has evolved through multiple relocations and expansions. Currently located in Susong Economic Development Zone, Anqing, Anhui, it occupies 28,000 m² with 22,000 m² of factory space, registered capital of 11 million yuan, and total investment over 100 million yuan. It is among the top camshaft manufacturers in China.

KORBOR uses high-performance alloys with heat treatments such as tempering, carburizing, and quenching to significantly enhance camshaft strength, hardness, and wear resistance. The company focuses exclusively on camshafts with 25 years of innovation, maintains high-precision mass production under IATF16949:2016 standards, and ensures "zero defect" quality with multi-level control. Their products cover over 800 automotive and 600 motorcycle camshaft models, supplying global markets with reliable, high-performance solutions.

Case Study 1: Improving Fuel Efficiency and Durability for a Daily Commuter Car

Background:

Original camshaft showed slight wear under high load and temperature, causing reduced fuel economy and unstable power delivery.

Upgrade Solution:

• High-performance alloy camshaft with carburizing and quenching.
• Increased cam lift and duration to improve airflow without sacrificing idle stability.
• Optimized lobe separation angle for smoother idle.

Results: Approximately 5% fuel economy improvement, smoother engine operation, extended camshaft service life.

Case Study 2: Comprehensive Performance Upgrade for a Racing Car

Background:

Original camshaft limited engine high-RPM output and throttle responsiveness.

Upgrade Solution:

• Titanium alloy camshaft with multi-stage heat treatments.
• Increased cam lift and duration, narrower lobe separation angle for more valve overlap.
• ECU valve timing tuning to maximize output.
